Pipe Radiographic Test Workstation

Model: PRTWS-16Aa/24Aa

Pipe Diameter Applicable: DN400/DN600

Поделение мнений:

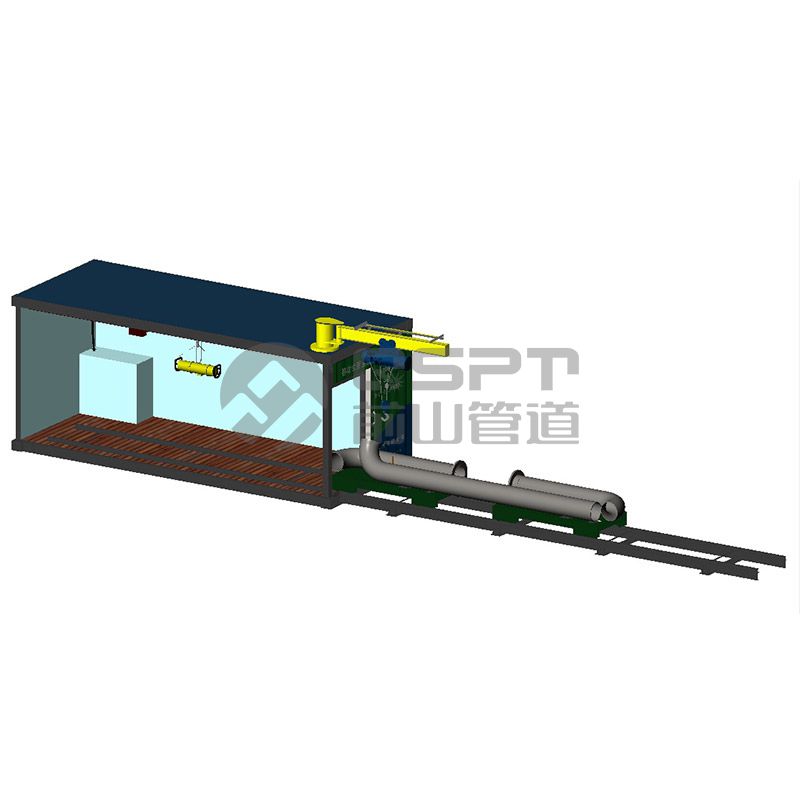

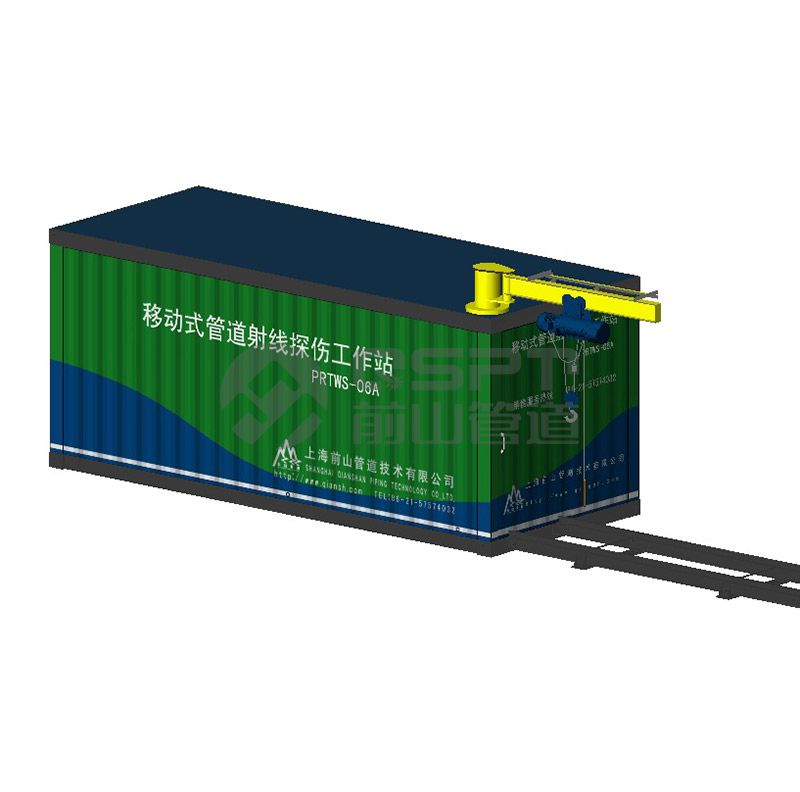

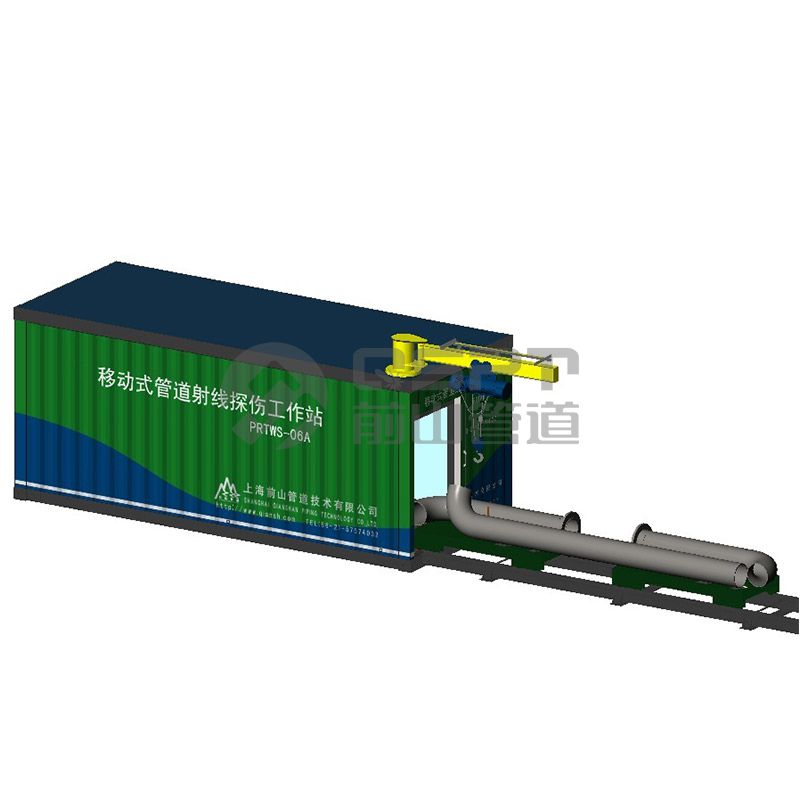

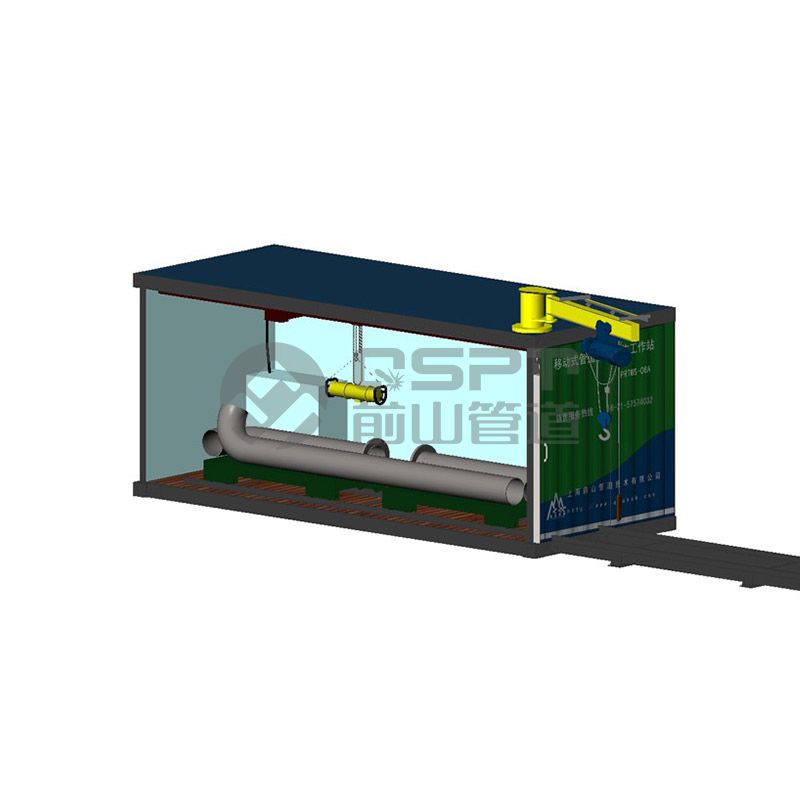

Performance features: one specially retrofitted 6m container; one free framework light rail crane; one pipe cantilever crane; one split-type air conditioner, onerail& trolley conveying system; lead plates installed all around (the roof: 10mm; the bottom: 16MM; others: 23mm); flaw detection power: 300KV/5MA; non-destructive flaw detection at daytime can be done and the bottleneck of flaw detection eliminated.

Original design

Movable flaw detection unit

Convenient transition

Working around the clock

24 hours
