Cantilever Pipe Automatic Welding Machine (Ordinary Type)

Model: CPAWM-16Ba/24Ba/32Ba/48Ba

Pipe Diameter Applicable: DN400/DN600/DN800/DN1200

Поделение мнений:

Преимущество:

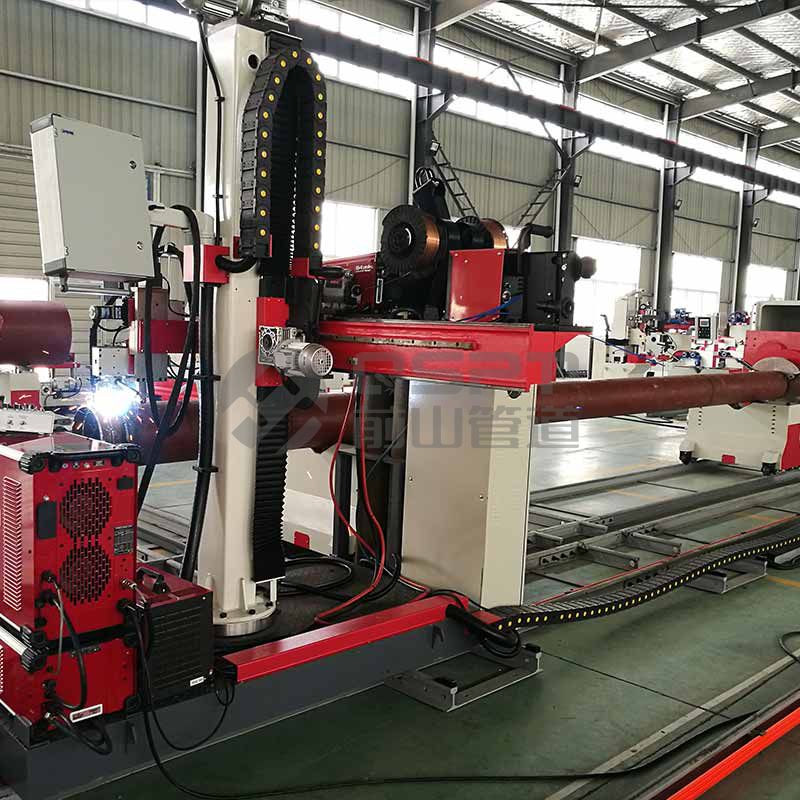

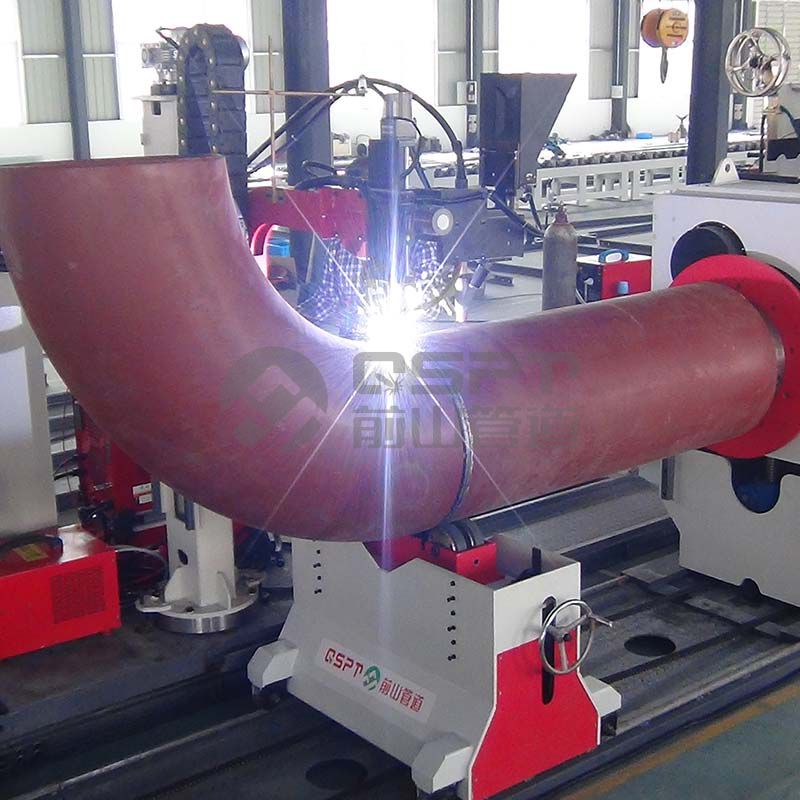

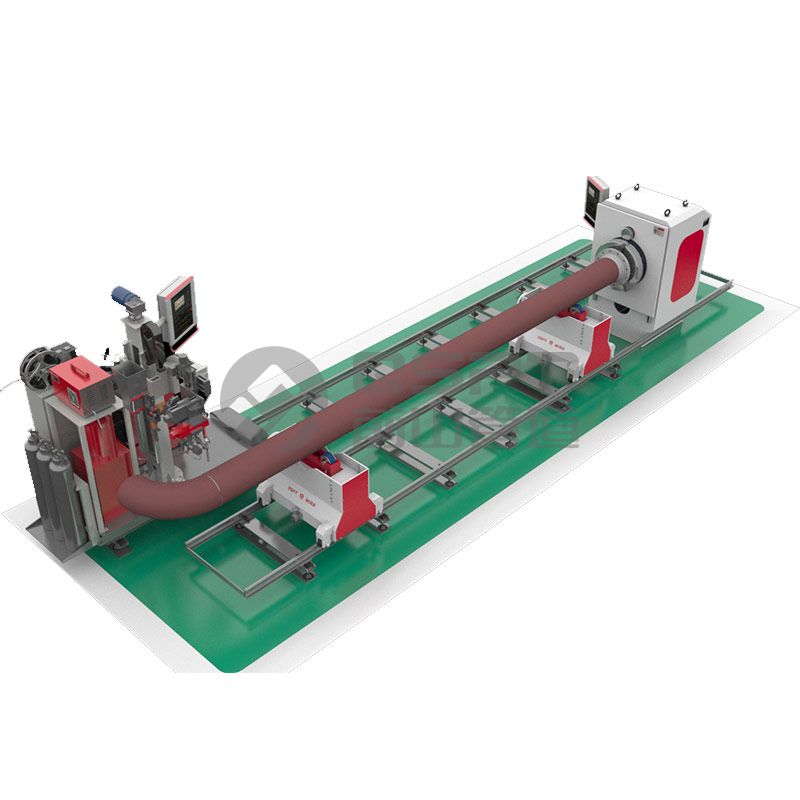

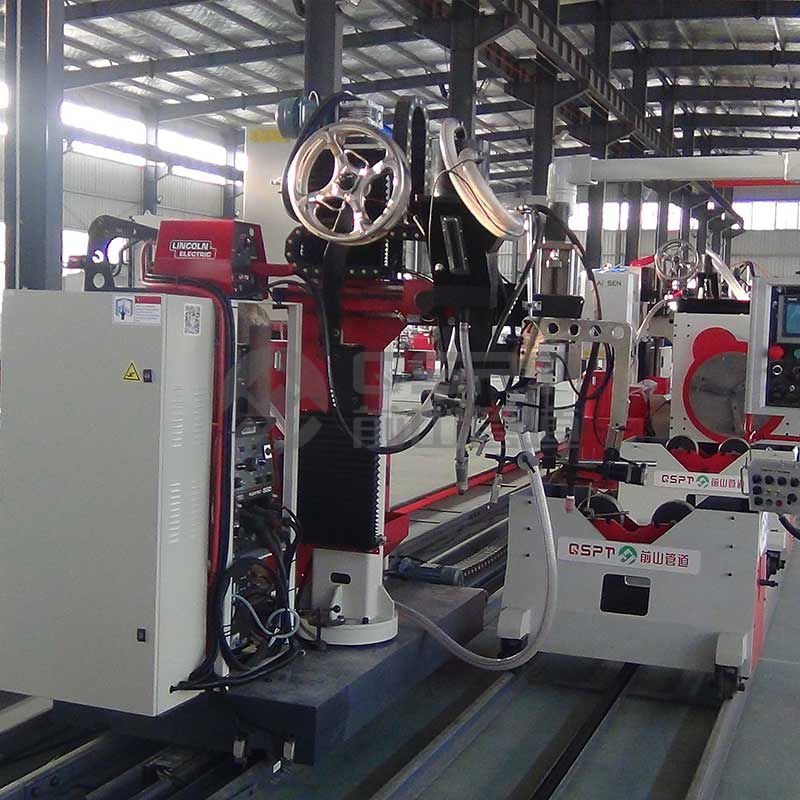

Performance Features: A classic model; suitable for welding "fitting + fitting"spool pieces and for spool pieces with multi-pass weld; able to do multi-pass welding continuously; equipped with: one fixed type welding positioner with the chuck; twomovable trolleys with supporting wheels; one traveling cantilever welding trolley; standard configuration: Lincoln Flextech500 multi-function welding power; TIG/MIG root welding with QSPT's root welding technology; TIG/MIG/SAW fill-in and cap welding; operation through a streamline welding control cabinet +an aluminum alloy wire control box.


Classical design

Pipe all-rounder welding master

Chuck drive, chuck clamped, cantilever trolley welding

Pipe center self-adaption

One-time clamping, multi-pass welding

Standard configuration: Lincoln Flextech500

TIG/MIG/ SAW

Max. DN1200

Max. 30mm

Max. 400DI/D(MIG+ SAW)

Max. equivalent to 8 welders

Production line equipment

High efficiency and safety
