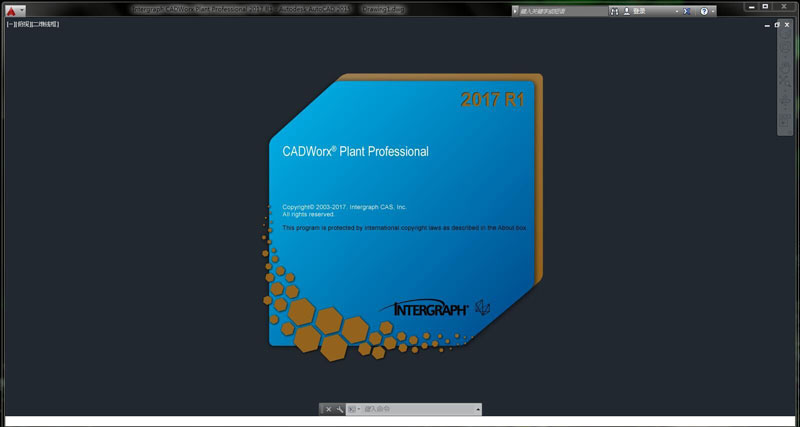

Model: CADWorx Plant
Latest Version: Professional 2016

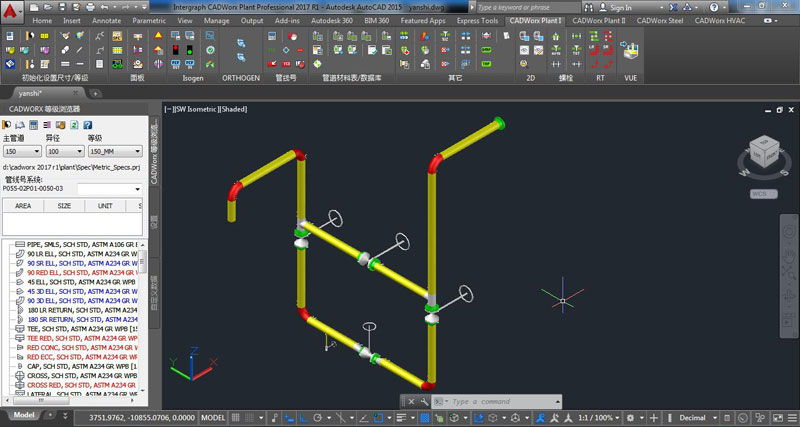

Performance Feature: Intergraph Corporation producing; with English and Chinese two languages available (free to switch); the need for AUTOCAD software operating platform; After the Piping Classfication Database and the piping line database being created, take the advantage of its drawing and model-building function to plot the 3D ISOMetric drawing model with reference toOriginal ISOMetric drawing of Design Institute / Engineering Company. After the fieldweld joints position being confirmed, it can generates the ISOMetric drawing required for installation and the piping spool drawing required for prefabrication, and also export information of the piping line, piping spool, weld joint, requested materials and length etc... Also The PCF can be exported, And again taking advantage of the SmartPlantSpoolgen to generate the ISOMetric drawing and Piping Spool drawing.
The world’s first class and universal
The mother of ISOMetric drawing and piping spool drawing
Great tool for pipe prefabrication conversion design
Fast modeling (ISOMetric 3D modeling)
Automatic generation (ISOMetric drawing and piping spool drawing) Delele the words in red
Fast exporting (image information files)
Seamless integration (management system software)
The must-have software for pipe prefabrication
Prepare ahead to guarantee victory!
